Voilamart 26''x4.0 Fat Tire 48V 1500W Electric Bicycle Rear Motor Conversion Kit

This 26" Electric Bicycle kit includes everything needed (except tires and battery) to convert your standard bike into a top-of-the-line performance electric bike, which delivers unequaled performance and reliability. You’ll be out cruising along at 34mph (55km/h) without a sweat!

Key Feature:

* Built to the highest international standards, CE, EN15194

* 48V 1500W and 250W super power brushless gearless hub motor

* Comes with 26'' x 4.0" Rear Wheel

* Restricted to 250W and 15 mph by default as a road-legal kit

* Alloy rim& galvanized steel spoke (The whole wheel without tire!)

* Rare-earth metal magnet are used in the motor to efficiently produce large power

* Aluminum alloy powerful controller guarantee big current supply

* Twist throttle has battery level display and power-cut off button

* Brake Levers cut off the power supply to the motor safely

* Crank speed sensor for pedal assist

* Aluminum alloy powerful controller

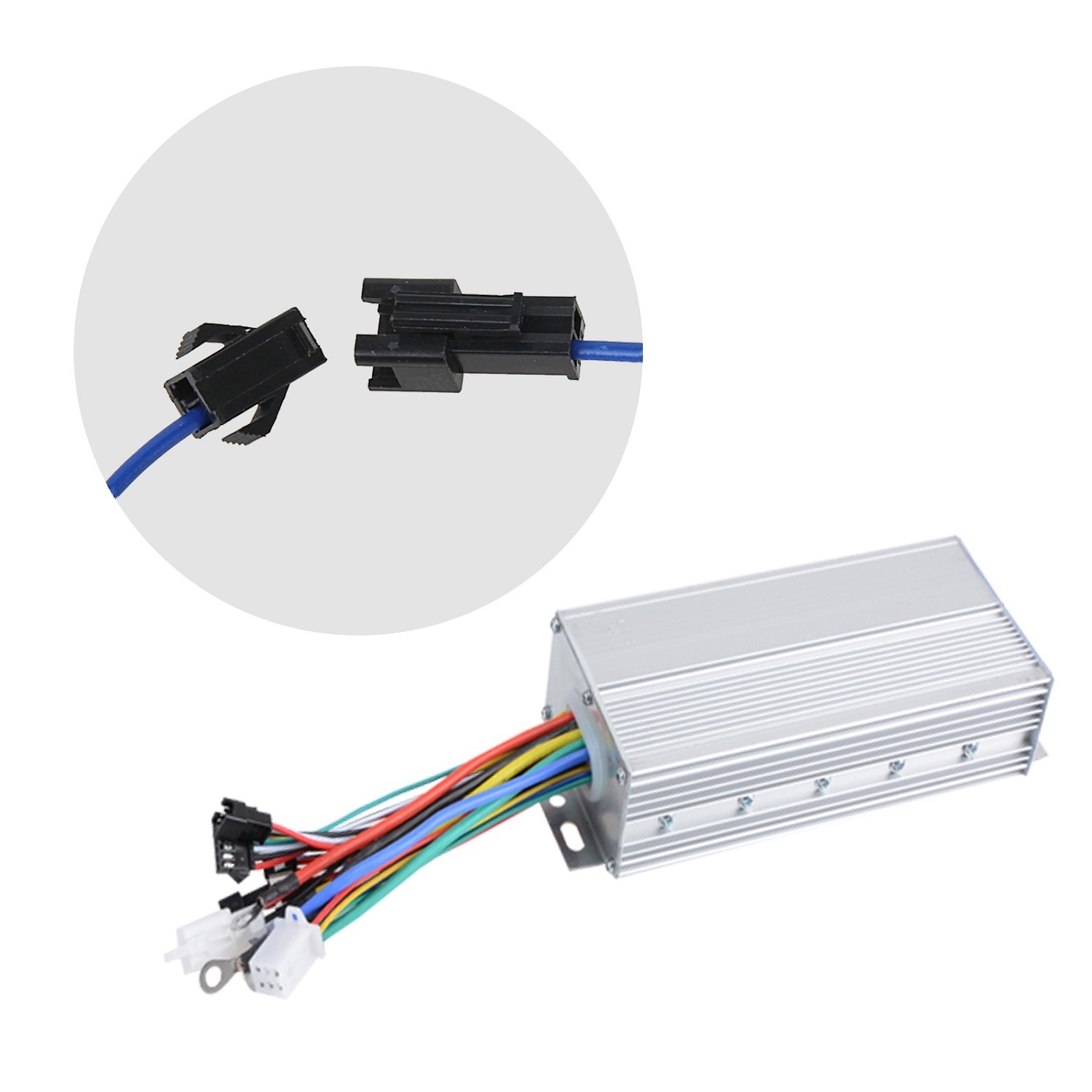

Upgraded Intelligent Motor Controller:

* Allow you to swap two power modes between the full 1500W power or 250W power by a single blue switch wire is embedded in controller.(Only for Twist Throttle)

* Still remain the full 1500W power with no speed control. (Only for Pedal Assist System,"PAS")

Note:

1. The system requires a 48 Volt electrokinetic cell battery with a nominal capacity not less than 14.5Ah.

2. Battery and charger are not included in package.

3.The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal!

So please connecting the Road-legal Switch Wire and disconnect the PAS on Road.

Caution: For your Safety, Please turn off the battery before connecting the Controller!

SPECIFICATIONS:

Wheel type: Rear Wheel

Motor: Brushless Gearless

Rim: Alloy

Power: 1500W / 48V or 250W / 48V

Torque: 45 N.M

Spokes: Steel

Max speed: 34 mph or 24 mph

Wheel Size: 26" x 4.0（For 26 inch tires）

Max load capacity:551Ibs

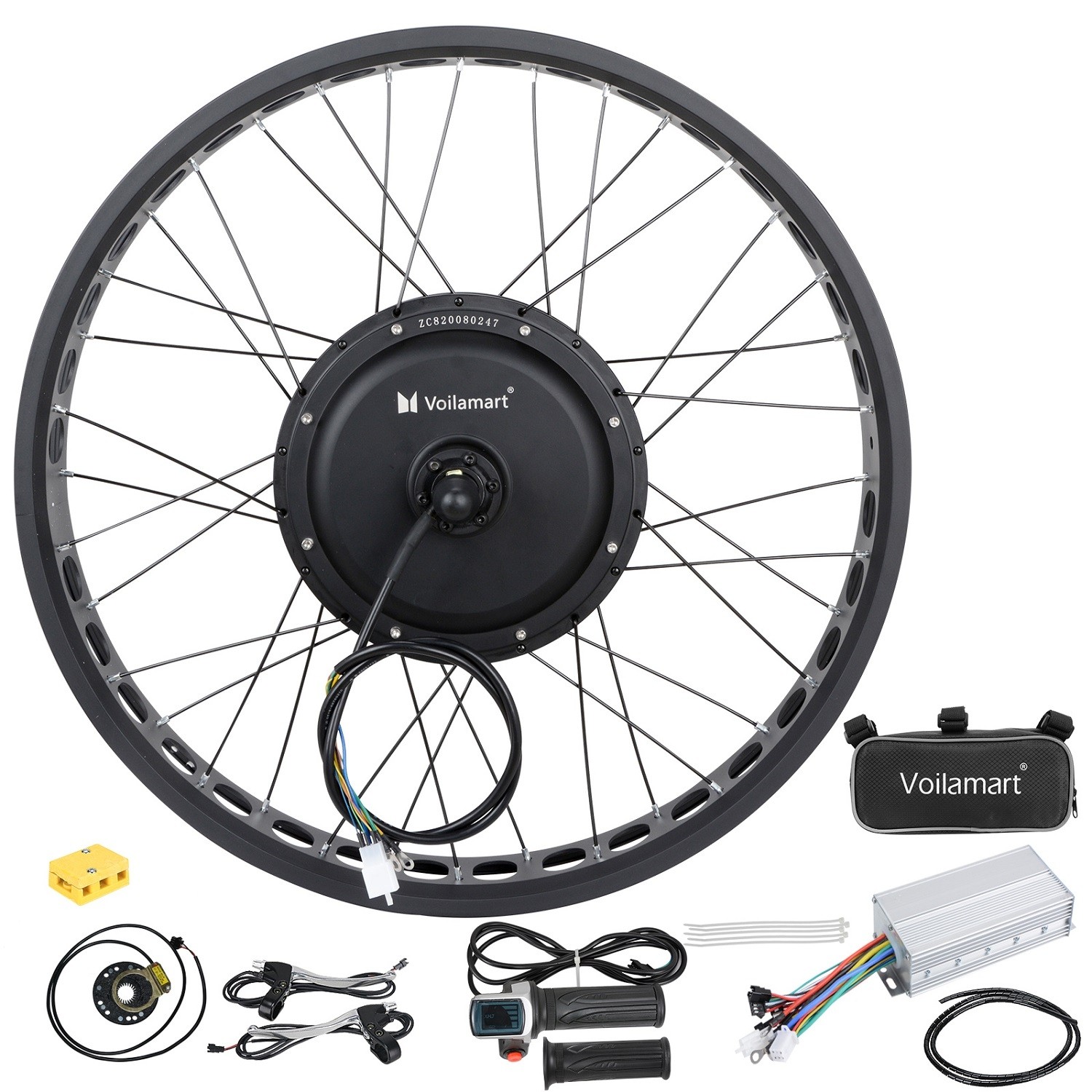

Package Include:

1x Brushless Gearless Motor Rear Wheel(without tire)

1x Intelligent Motor Controller

1x Pedal Assist Crank Sensor

1x Cable Ties & Plastic Coil

1x Pair of Handle Bars (included Twist Throttle)

1x Controller Bag

1x Pair of Brake Handles

1x Jump Box

1x 7 speed Freewheel

1x Manual
