Voilamart 1000W 29" Electric Bicycle Conversion Kit Ebike Motor Cycling Hub Rear Wheel with LCD (Twist Throttle)

This 29" 1000W Electric Bicycle kit includes everything needed(except battery) to convert your standard bike into a top-of-the-line performance electric bike, which delivers unequaled performance and reliability. You’ll be out cruising along at 28mph (45km/h) without a sweat!

Key feature:

* Built to the highest international standards, CE, EN15194

* 48V 1000W and 250W super power brushless gearless hub motor

* LCD display shows battery level and pedal assistance settings

* Restricted to 250W and 16 mph by default as a road-legal kit

* Nylon tire& alloy rim& galvanized steel spoke

* Rare-earth metal magnet are used in the motor to efficiently produce large power

* Aluminum alloy powerful controller guarantee big current supply

* Adjustable 5 level intelligent pedal assist with twist throttle

* Brake Levers cut off the power supply to the motor safely

* Crank speed sensor for pedal assist

* Aluminum alloy powerful controller

Upgraded Intelligent Motor Controller:

* Allow you to swap two power modes between the full 1000W power or 250W power by a single blue switch wire is embedded in controller.(Only for Twist Throttle)

* Still remain the full 1000W power with no speed control.(Only for Pedal Assist System,"PAS")

SPECIFICATIONS:

Wheel type: Rear Wheel

Motor: Brushless Gearless

Tire Material: Nylon

Rim Material: Double Wall Alloy

Power: 1000W / 48V or 250W / 48V

Spokes: Steel, 12G×2.6mm, 36pcs

Wheel Size: 29" (737mm)

Rim Diameter: 24.96" (634mm)

Tyre Size: 29" x 1.95"

Rear Dropout: 5.3" (135mm)

Wheel Axle: 8.28" (210 x Φ10mm)

Compatiable Disc: 160mm

Torque: 45 N.M

Net weight:12.5kg

Max speed: 28 mph or 16 mph (45km/ or 25km/h)

Max load capacity: 440 LBS

Package Include:

1x Brushless Gearless Motor Rear Wheel

1x Intelligent Motor Controller

1x Sw900 LCD Display

1x Pedal Assist Crank Sensor

1x Cable Ties & Plastic Coil

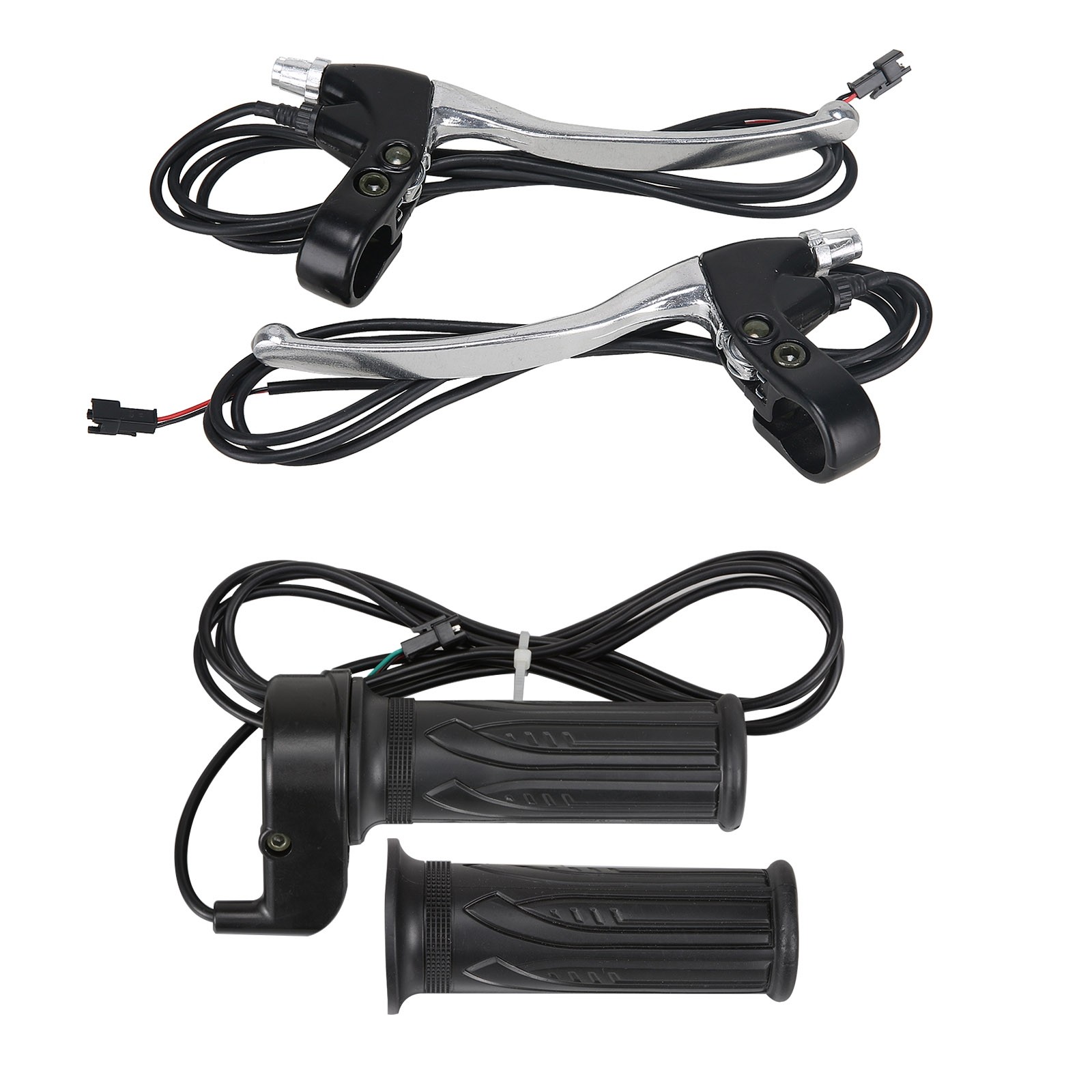

1x Pair of Handle Bars (included Twist Throttle)

1x Controller Bag

1x Pair of Brake Handles

1x Manual

1x Tyre (Not Installed)

1x 7 Speed Freewheel

Note:

1.The system requires a 48 Volt electrokinetic cell battery with a nominal capacity not less than 11.6Ah.

2.Battery and charger are not included in package.

3.The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal!

So please connecting the Road-legal Switch Wire and disconnect the PAS on Road.

Caution: For your Safety, Please turn off the battery before connecting the Controller!
